Product Description
**There was an older style and newer style gearbox. This is the list for the newer gearboxes. To know if you have the newer style gearbox is once it’s opened, see if both bearings are the same on the input shaft**

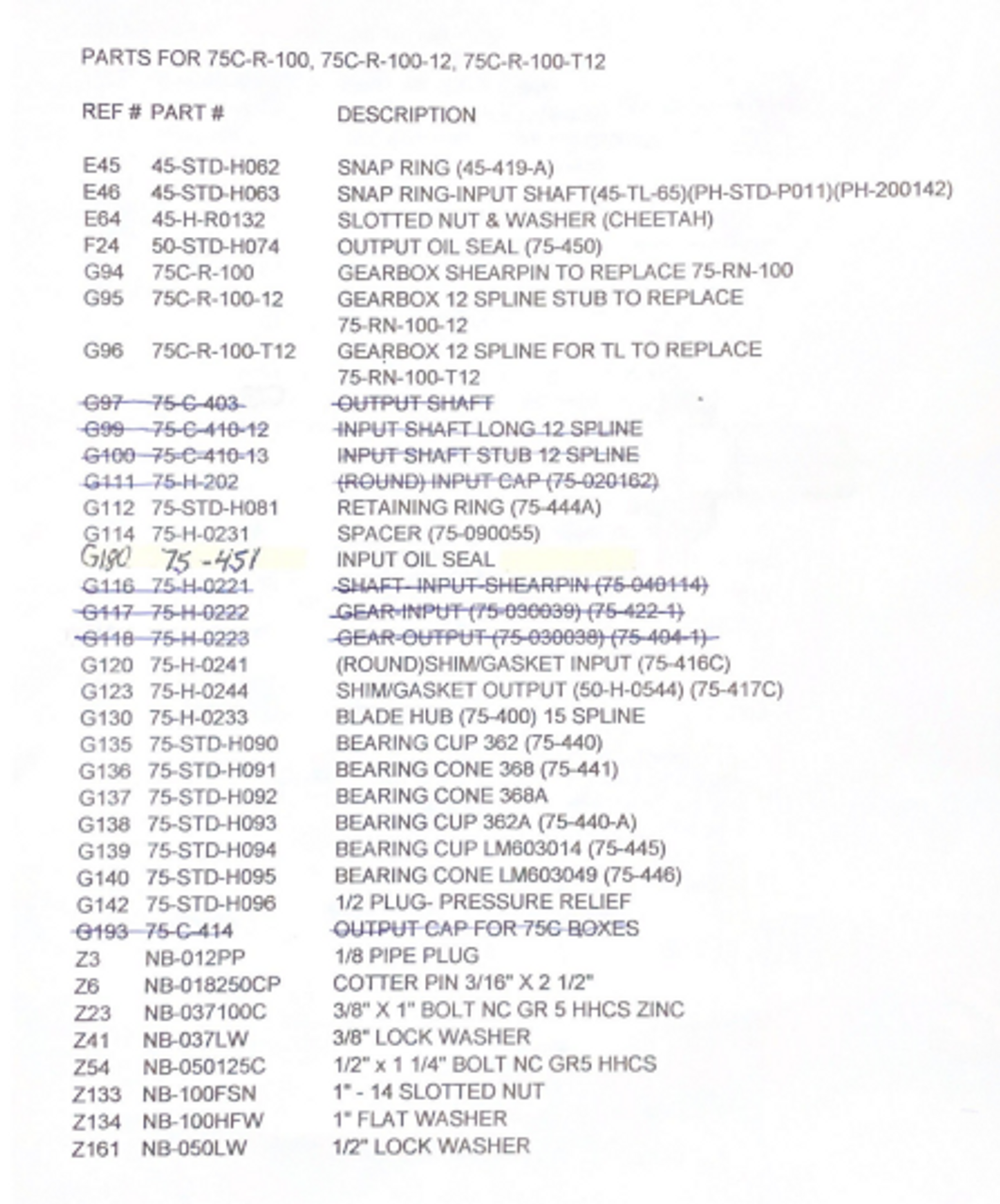

Available Parts List
E45 - 45-STD-H062 - Snap Ring 45-419-A --------- click here
E46 - 45-STD-H063 - Snap Ring, Input shaft 45-TL-65 -------- click here
F24 - 50-STD-H074 - Output oil seal 75-450 ---------- click here
G180 - 75-451 - Input oil seal ------ click here
G112 - 75-STD-H081 - Retaining ring 75-444A ------- click here
G130 - 75-H-0233 - Blade Hub 15 spline 75-400 --------- click here
G135 - 75-STD-H090 - Bearing cup 362 75-440 ---------- click here
G136 - 75-STD-H091 - Bearing cone 358 75-441 --------- click here
G137 - 75-STD-H092 - Bearing cone 368A --------- click here
G138 - 75-STD-H093 - Bearing cup 362A 75-440-A -------- click here
G139 - 75-STD-H094 - Bearing cone LM603014 75-445 --------- click here
G140 - 75-STD-H095 - Bearing cone LM603049 75-446 --------- click here
G142 - 75-STD-H096 - 1/2" pressure relief plug --------- click here
Z3 - NB-012PP - 1/8" pipe plug ---------- click here
Z6 - NB-018250CP - Cotter Pin 3/16" x 2 1/2" -------------- click here
Z23 - NB-037100C - 3/8" x 1" bolt gr 5 ------------- click here
Z41 - NB-037LW - 3/8" lock washer ------------- click here
Z57 - NB-050150C - 1/2" x 1 1/2" bolt grade 5 ------- click here
Z133 - NB-100FSN - 1" slotted nut 14 fine thread -------- click here
Z134 - NB-100HFW - 1" flat washer ----------- click here
Z161 - NB-050LW - 1/2" Lock washer ------ click here
Product Videos
Custom Field

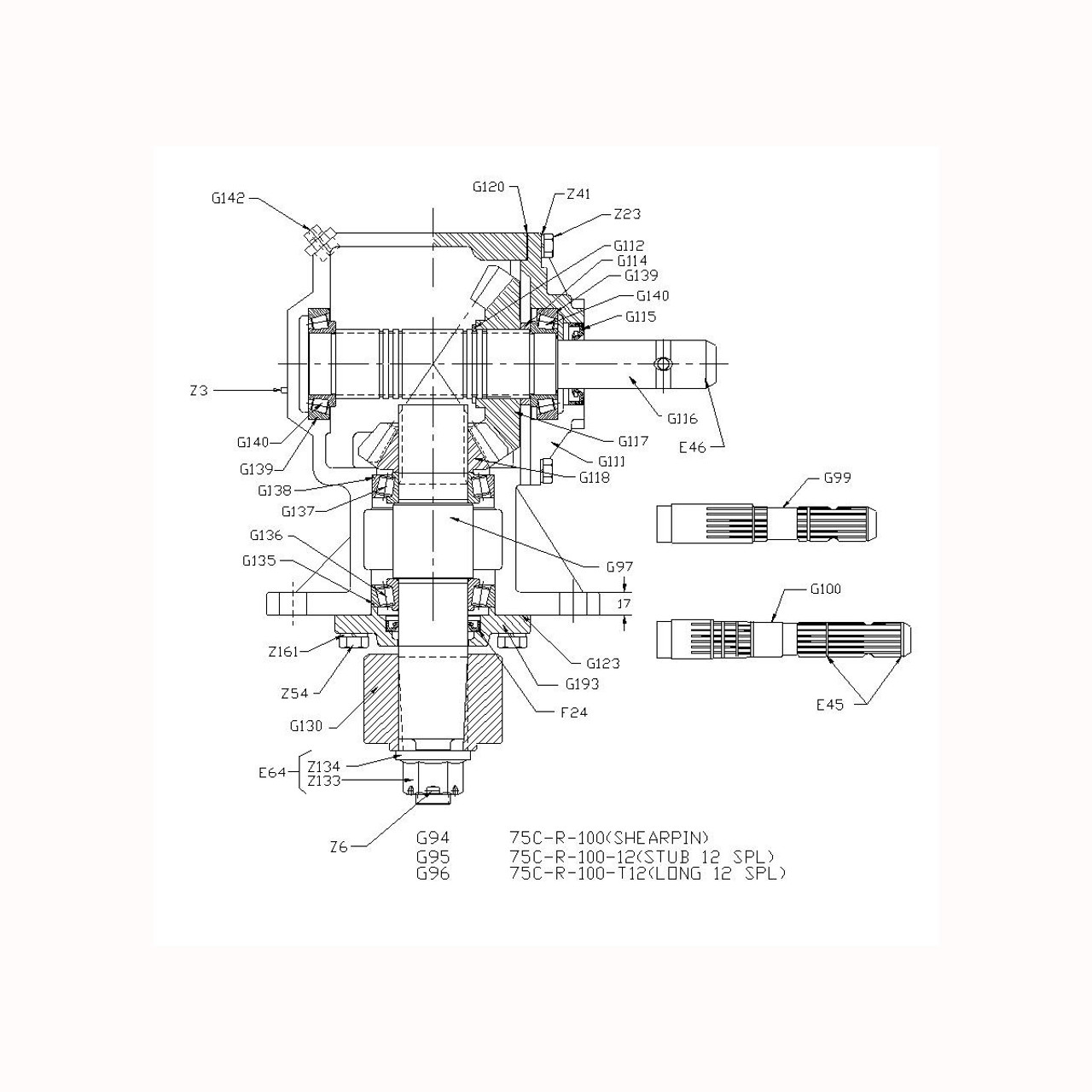

75CR100 Parts Diagram - downloadable pdf
