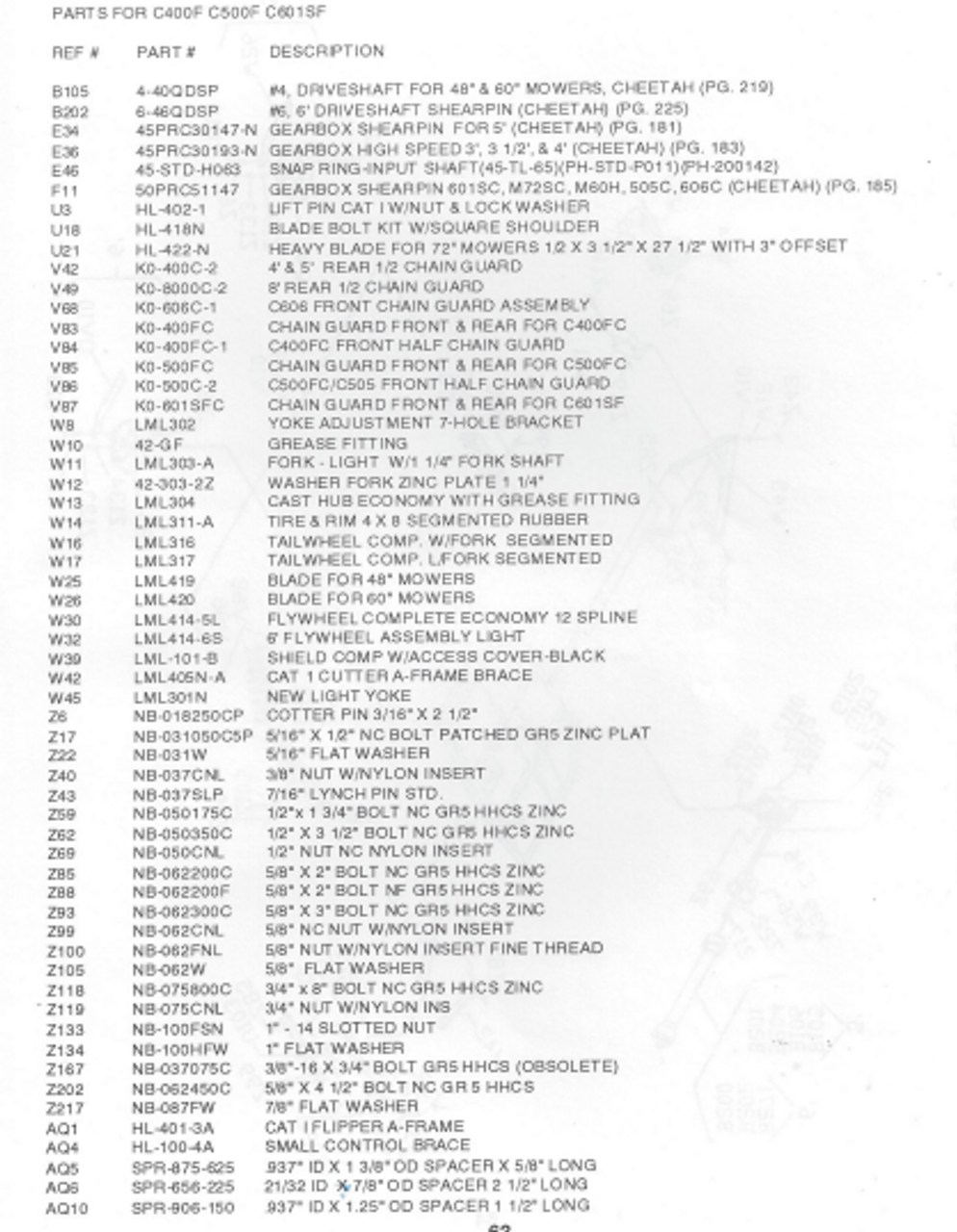

Available Parts List
Ref# - Part# - Description - Link to item
B105 - 4-40QDSP - Driveshaft ------ click here
E34 - 45PRC30147-N - Gearbox, shearpin ------- click here
E46 - 45-STD-H063 - Snap Ring - Input Shaft (45-TL-65)(PH-STD-P011)(PH-200142 -----click here
E62 - 45-300 - Blade hub, 12 spline -----click here
L19 - BB-403-1 - A-frame spacer 2 1/4" long ------ click here
U3 - HL-402-1 - Lift pin cat 1 w/nut & lock washer ------ click here
U6 - HL-403 - Spacer 1 1/2" long -------- click here
U18 - HL-418 or HL-418N - Blade Bolt Kit (round shoulder or square shoulder) ------- round shoulder click here square shoulder click here
V4 - K0-500C - Chain Guard Front & Rear --------- click here
V42 - K0-400C-1 - Rear Chain Guard -------- click here
V44 - K0-500C-1 - Front Chain Guard ------- click here
W8 - LML302 - Yoke adjustment 7-hole bracket -------- click here
W9 - 42-301-1 - Yoke Barrel 1 1/4" -------- click here
W10 - 42-GF - Grease Fitting ------- click here
W11 - LML303-A - Tailwheel Fork with 1 1/4" diameter shaft with 3/4" or 1" axle hole -------- click here
W12 - 42-303-2Z - Fork Washer 1 1/4" --------- click here
W13 - LML304 - Economy Cast Hub with 3/4" or 1" axle hole ----- 3/4" click here 1" click here
W13 - HL-304 - Heavy Duty Bearing Type Hub with 3/4" or 1" axle hole - 3/4" click here 1" click here
W14 - LML311-A - Tire & Rim, 4 x 8 segmented rubber -------- click here
W16 - LML316 - Tailwheel Complete with Fork --------- click here
W17 - HL-317-C - Tailwheel Complete without Fork with 3/4" or 1" axle hole - 3/4" click here 1" click here
W22 - LML403 - 1 1/4" Spacer ------- click here
W26 - LML420 - Blade for 60" cutters -------- click here
W30 - LML414-5LA - Flywheel Complete 12 spline center ------ click here
W39 - LML-101-B - Input shaft gearbox access cover ---- click here
W40 & W41 - LML401N-LR - A-Frame Assembly Cat 1 -------click here
W42 - LML405N-A - Brace, A-Frame Cat 1 -------- click here
W45 - LML301N - New Light Yoke -------- click here
Z6 - NB018250CP - Cotter Pin ------- click here
Z22 - NB031W - 5/16" Flat Washer -------- click here
Z40 - NB037CNL - 3/8" Nut w/nylon insert ------- click here
Z43 - NB037SLP - 7/16" Lynch Pin std --------- click here
Z59 - NB050175C - 1/2" x 1 3/4" Bolt grade 5 ------- click here
Z62 - NB050350C - 1/2" x 3 1/2" Shearpin bolt grade 5 ------ click here
Z69 - NB050CNL - 1/2" nut w/nylon insert ------- click here
Z85 - NB062200C - 5/8" x 2" bolt grade 5 ------- click here
Z93 - NB062300C - 5/8" x 3" bolt grade 5 -------- click here
Z99 - NB062CNL - 5/8" nut w/nylon insert -------- click here
Z105 - NB062W - 5/8" flat washer -------- click here
Z115 - NB075450C - 3/4" x 4 1/2" bolt grade 5 -------- click here
Z118 - NB075800C - 3/4" x 8" bolt grade 5 -------- click here
Z119 - NB075CNL - 3/4" nut w/nylon insert -------- click here
Z133 - NB100FSN - 1" slotted nut 14 fine thread ------- click here
Z134 - NB100HFW - 1" flat washer -------- click here
Z202 - NB062450C - 5/8" x 4 1/2" bolt grade 5 -------- click here
Product Videos
Short Description

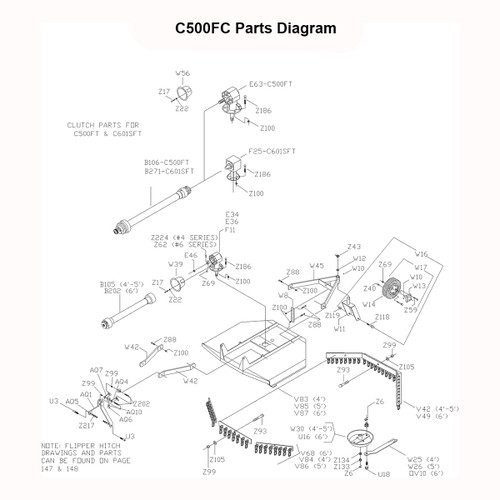

C500FC Parts Diagram
